Bridges & Tunnel for Haramain High Speed Rail

Start: January 2012 | Finish: December 2013
Status: Completed


Jeddah, Madinah -Saudi Arabia

Contract Type:


Saudi Railways Organization

Client Consultant:

Design Consultant:

Project Description:

One (1) construction of three (3) Railway Bridges with a total length of approximate 1,876m and underpass of approximate 515m length

Demolition Work:

New Networks:

Work Include:

Construction of 3 Bridges with Abutments and Piers with Pre-cast Box Girders and Omega Type Precast Girders. Underpass with Retaining wall and Cast-Insitu flat Slab.

1. Bridge at Station 70+039 (Railway Bridge)

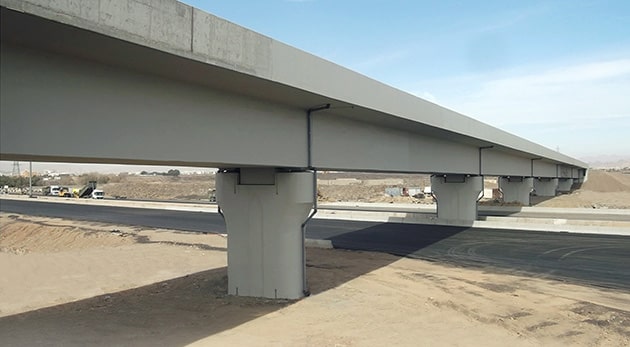

•Total Length of Bridge structure 494 Mtr with 11 Spans of around 48 Mtr.
•Piles and Concrete Foundations with Piers Structures with a max height of 22 Mtr
•Precast Box Girders of Width 12 Mtr.
•Including Other items like Parapet, Waterproofing, etc.

2. Bridge at Station 445+044.62 (Railway Bridge Crossing 3rd Ring Road)

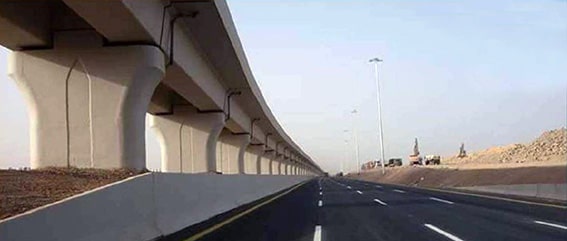

•Total Length of Bridge around 1120 Mtr with 40 Spans.
•Piles and Concrete Foundations with 35 Piers Structures and 4 Portal Frames with a max height of 10 Mtr
•Abutments on both Sides
•80 Omega Girders of 12 Mtr width on 2 Sides of the Piers.
•Including Other items like Parapet, Waterproofing, etc.

3. Tunnel at Station 433+387 (Crossing 3rd Ring Road)
•Total Length of Tunnel 515 Mtr with Height 12 Mtr.
•Concrete Foundations with Retaining Wall section of 3 Mtr width.
•Cast-insitu Concrete Slab.

4. Railway Bridge at Station 447+044.02 (Crossing Riyadh Road)
•Total Length of Bridge around 282 Mtrs with 6 Spans.
•Abutments on both Sides and 5 Piers of Max Height 7 Mtrs.
•Box Girders
•Including Other items like Parapet, Waterproofing, etc.
